Model No.: LF 14 BF 09 Hits: 4024
China ASTM A105 Carbon Steel RF Blind Flange Provider: ASTM A105, ASTM A350 LF1, LF2 Blind Flanges, Raised Face, 300LB, PN50, 1/2-24 Inch, DN15-DN600.
Request a quote
Share
Tags:
Detail Information

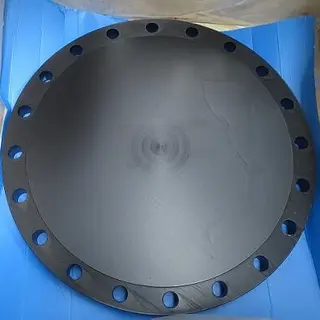

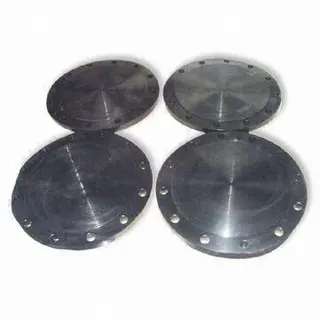

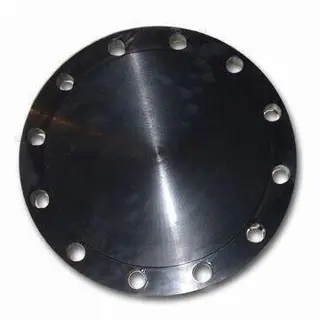

Product: RF Carbon Steel Blind Flange.
Type: Blind Flange.
Materials: ASTM A105, ASTM A350, Carbon Steel.
Grades: LF1, LF2.
Face: RF.
Standards: DIN 2636, DIN 2633.
Pressure: 300LB (PN50).
Sizes: 1/2-24 Inch (DN15-DN600).
| Pipe Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diameter of Raised Face | Approx. Weight | ||
| inch | dn | O | C | G | KG/PCS | LB/PCS |
| 1/2" | 15 | 95.5 | 14.2 | 35.1 | 0.8 | 1.8 |
| 3/4" | 20 | 117. 5 | 15.7 | 42.9 | 1.2 | 2.6 |
| 1" | 25 | 124. 0 | 17.5 | 50.8 | 1.5 | 3.3 |
| 1-1/4" | 32 | 133. 5 | 19.1 | 63.5 | 2 | 4.4 |
| 1-1/2" | 40 | 155. 5 | 20.6 | 73.2 | 2.9 | 6.4 |
| 2" | 50 | 165. 0 | 22.4 | 91.9 | 3.5 | 7.7 |
| 2-1/2" | 65 | 190. 5 | 25.4 | 104.6 | 5.3 | 11.7 |
| 3" | 80 | 209. 5 | 28.4 | 127 | 7.2 | 15.9 |
| 3-1/2" | 90 | 228. 5 | 30.2 | 139.7 | 9.2 | 20.3 |
| 4" | 100 | 254. 0 | 31.8 | 157.2 | 12.2 | 26.8 |
| 5" | 125 | 279. 5 | 35.1 | 185.7 | 16 | 35.2 |
| 6" | 150 | 317. 5 | 36.6 | 215.9 | 22 | 48.4 |
| 8" | 200 | 381. 0 | 41.1 | 269.7 | 36 | 79.5 |
| 10" | 250 | 444. 5 | 47.8 | 323.9 | 55 | 121 |
| 12" | 300 | 520. 5 | 50.8 | 381 | 82.5 | 182 |
| 14" | 350 | 584. 0 | 53.8 | 412.8 | 108 | 238 |
| 16" | 400 | 647. 5 | 57.2 | 469.9 | 139 | 306 |
| 18" | 450 | 711. 0 | 60.5 | 533.4 | 178 | 392 |
| 20" | 500 | 774. 5 | 63.5 | 584.2 | 228 | 503 |
| 24" | 600 | 914. 5 | 69.9 | 692.2 | 350 | 772 |
