Key Specifications / Features
Model No.: LF 16 WNF 47 Hits: 573

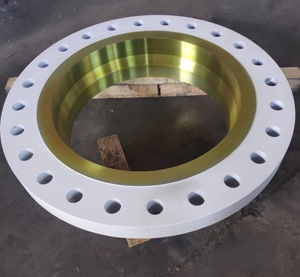

China ASTM A105 WN Flange Manufacturer Landeeflange offers ASTM A105 Weld Neck Flange, DN 80, PN 20, ANSI B16.5, Raised Face.
Request a quote
Share
Tags:
Detail Information
Type：Carbon Steel WN Flange.
Material: ASTM A105.
Standard: ANSI B16.5.
Pressure: PN 20.
Size: DN 80.
Face: Raised Face.
Material: ASTM A105.
Standard: ANSI B16.5.
Pressure: PN 20.
Size: DN 80.
Face: Raised Face.
| CL | 150 | 300 | 600 | 900 | 1500 | 2500 |
| DIA A |
30 | 38 | 38 | 38 | 38 | 43 |
| DIA D |
90 | 95 | 95 | 120 | 120 | 135 |
| THK B |
9.6 | 12.7 | 14.3 | 22.3 | 22.3 | 30.2 |
| 11.2 | 14.3 | 20.7 | 28.7 | 28.7 | 36.6 | |
| DIA G |
35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| DIA K |
60.3 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| H | 46 | 51 | 52 | 60 | 60 | 73 |
| 47.6 | 52.6 | 58.4 | 66.4 | 66.4 | 79.4 | |
| NO. L |
4 | 4 | 4 | 4 | 4 | 4 |
| DIA L |
15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
| Stud Bolts Diameter x Length | ||||||
| DIA (in) |
1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 |
| Len mm |
55 | 65 | 75 | 110 | 110 | 120 |
