Key Specifications / Features
Model No.: LF 14 TF 01 Hits: 1703

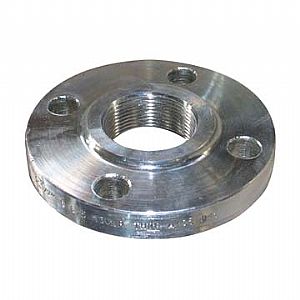

China Thread Flange Manufacturer Landee Offers Hot Dipped Galvanized Threaded Flange, 600LB (PN100), ASTM A182 F304, F316, BS 4504, EN 1092, DN15-150.
Request a quote
Share
Tags:
Detail Information
Type: Thread Flange, Threaded Flange.
Material: ASTM A182 F304/304L, F316/316L/F316H.
Standard: BS 4504, EN 1092.
Pressure: 600LB (PN100).
Size range: 1/2-6 Inch (DN15-DN150).
Coating: Galvanized, Hot Dipped.
| Flange Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Length Hub | Thread Length | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
Approx. Weight | ||
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | KG/PCS | LB/PCS |
| 1/2" | 15 | 95.5 | 14.2 | 38.1 | 35.1 | 22.4 | 22.4 | 66.5 | 15.7 | 4 | 1/2" | 0.9 | 2 |
| 3/4" | 20 | 117. 5 | 15.7 | 47.8 | 42.9 | 25.4 | 27.7 | 82.6 | 19.1 | 4 | 5/8" | 1.4 | 3.1 |
| 1" | 25 | 124. 0 | 17.5 | 53.8 | 50.8 | 26.9 | 34.5 | 88.9 | 19.1 | 4 | 5/8" | 1.8 | 4 |
| 1-1/4" | 32 | 133. 5 | 20.6 | 63.5 | 63.5 | 28.4 | 43.2 | 98.6 | 19.1 | 4 | 5/8" | 2.3 | 5 |
| 1-1/2" | 40 | 155. 5 | 22.4 | 69.9 | 73.2 | 31.8 | 49.5 | 114.3 | 22.4 | 4 | 3/4" | 3.3 | 7.3 |
| 2" | 50 | 165. 0 | 25.4 | 84.1 | 91.9 | 36.6 | 62 | 127 | 19.1 | 8 | 5/8" | 4 | 8.8 |
| 2-1/2" | 65 | 190. 5 | 28.4 | 100.1 | 104.6 | 41.1 | 74.7 | 149.4 | 22.4 | 8 | 3/4" | 5.5 | 12.1 |
| 3" | 80 | 209. 5 | 31.8 | 117.3 | 127 | 46 | 90.7 | 168.1 | 22.4 | 8 | 3/4" | 7.4 | 16.3 |
| 3-1/2" | 90 | 228. 5 | 35.1 | 133.4 | 139.7 | 49.3 | 103.4 | 184.2 | 25.4 | 8 | 7/8" | 9.2 | 20.2 |
| 4" | 100 | 273. 0 | 38.1 | 152.4 | 157.2 | 53.8 | 116.1 | 215.9 | 25.4 | 8 | 7/8" | 16.8 | 37 |
| 5" | 125 | 330. 0 | 44.5 | 189 | 185.7 | 60.5 | 143.8 | 266.7 | 28.4 | 8 | 1" | 28.5 | 62.8 |
| 6" | 150 | 355. 5 | 47.8 | 222.3 | 215.9 | 66.5 | 170.7 | 292.1 | 28.4 | 12 | 1" | 36.2 | 79.8 |
