Short Description

Model No.: LF 16 WNF 41 Hits: 44

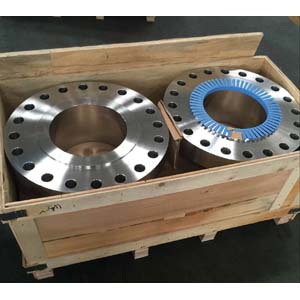

China Welding Neck Flange Manufacturer Landeeflange offers ASTM A182 Welding Neck Flange, 10 Inch (DN 250), 900LBS, SCH80, ASTM A182 F304L, RF Ends.
Request a quote Share

Key Specifications/Features

Name: Welding Neck Flange.
Material: ASTM A182 F304L.
Standard: ASME B16.5.
Thickness: SCH80.
Size: 10 Inch (DN 250).
Pressure: 900LBS.
Ends: RF.

CL 150 300 600 900 1500 2500
DIA
A
30 38 38 38 38 43
DIA
D
90 95 95 120 120 135
THK
B
9.6 12.7 14.3 22.3 22.3 30.2
11.2 14.3 20.7 28.7 28.7 36.6
DIA
G
35.1 35.1 35.1 35.1 35.1 35.1
DIA
K
60.3 66.7 66.7 82.6 82.6 88.9
H 46 51 52 60 60 73
47.6 52.6 58.4 66.4 66.4 79.4
NO.
L
4 4 4 4 4 4
DIA
L
15.9 15.9 15.9 22.2 22.2 22.2
