Key Specifications / Features
Model No.: LF 14 WNF 19 Hits: 3351

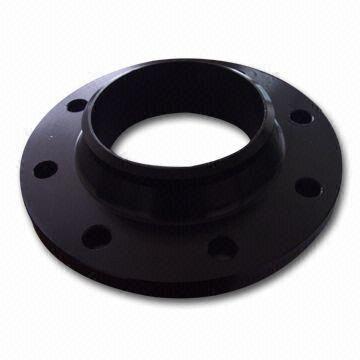

China DIN 2632 RF Weld Neck Flange Proveider: DN10-DN400 (3/8-16 Inch) Weld Neck Flanges, Raised Face, ASTM A515, DIN 2631, DIN 2632, DIN 86041, PN10.
Request a quote
Share
Tags:
Detail Information
Product: RF Welded Neck Flange.
Type: Welded Neck Flange.
Materials: ASTM A515.
Face: RF.
Standards: DIN 2632, DIN 2631, DIN 86041.
Pressure: PN10.
Sizes: DN10-DN400 (3/8-16 Inch).
| Flange Parameter | Flange Dimension | Neck Size | Hub Size | Screw | Approx. Flange Weight | ||||||||||
| DN | ISO | DIN | D | b | k | h1 | d3 | s | r | h2 | d4 | f | No. of Holes | d2 | KG/PCS |
| 10 | - | 14 | 75 | 12 | 50 | 28 | 22 | 1.8 | 4 | 6 | 35 | 2 | 4 | 11 | 0.34 |
| 17.2 | - | 75 | 12 | 50 | 28 | 26 | 1.8 | 4 | 6 | 35 | 2 | 4 | 11 | 0.34 | |
| 15 | - | 20 | 80 | 12 | 55 | 30 | 28 | 2 | 4 | 6 | 40 | 2 | 4 | 11 | 0.39 |
| 21.3 | - | 80 | 12 | 55 | 30 | 30 | 2 | 4 | 6 | 40 | 2 | 4 | 11 | 0.4 | |
| 20 | - | 25 | 90 | 14 | 65 | 32 | 35 | 2.3 | 4 | 6 | 50 | 2 | 4 | 11 | 0.6 |
| 26.9 | - | 90 | 14 | 65 | 32 | 38 | 2.3 | 4 | 6 | 50 | 2 | 4 | 11 | 0.6 | |
| 25 | - | 30 | 100 | 14 | 75 | 35 | 40 | 2.6 | 4 | 6 | 60 | 2 | 4 | 11 | 0.76 |
| 33.7 | - | 100 | 14 | 75 | 35 | 42 | 2.6 | 4 | 6 | 60 | 2 | 4 | 11 | 0.75 | |
| 32 | - | 38 | 120 | 14 | 90 | 35 | 50 | 2.6 | 6 | 6 | 70 | 2 | 4 | 14 | 1.07 |
| 42.4 | - | 120 | 14 | 90 | 35 | 55 | 2.6 | 6 | 6 | 70 | 2 | 4 | 14 | 1.06 | |
| 40 | - | 44.5 | 130 | 14 | 100 | 38 | 58 | 2.6 | 6 | 7 | 80 | 3 | 4 | 14 | 1.21 |
| 46.3 | - | 130 | 14 | 100 | 38 | 62 | 2.6 | 6 | 7 | 80 | 3 | 4 | 14 | 1.2 | |
| 50 | - | 57 | 140 | 14 | 110 | 38 | 70 | 2.9 | 6 | 8 | 90 | 3 | 4 | 14 | 1.37 |
| 60.3 | - | 140 | 14 | 110 | 38 | 74 | 2.9 | 6 | 8 | 90 | 3 | 4 | 14 | 1.36 | |
| 65 | 76.1 | - | 160 | 14 | 130 | 38 | 88 | 2.9 | 6 | 9 | 110 | 3 | 4 | 14 | 1.69 |
| 80 | 88.9 | - | 190 | 16 | 150 | 42 | 102 | 3.2 | 8 | 10 | 128 | 3 | 4 | 18 | 2.72 |
| 100 | - | 108 | 210 | 16 | 170 | 45 | 122 | 3.6 | 8 | 10 | 148 | 3 | 4 | 18 | 3.29 |
| 114.3 | - | 210 | 16 | 170 | 45 | 130 | 3.6 | 8 | 10 | 148 | 3 | 4 | 18 | 3.22 | |
| 125 | - | 133 | 240 | 18 | 200 | 48 | 148 | 4 | 8 | 10 | 178 | 3 | 8 | 18 | 4.58 |
| 139.7 | - | 240 | 18 | 200 | 48 | 155 | 4 | 8 | 10 | 178 | 3 | 8 | 18 | 4.42 | |
| 150 | - | 159 | 265 | 18 | 225 | 48 | 172 | 4.5 | 10 | 12 | 202 | 3 | 8 | 18 | 5.26 |
| 158.3 | - | 265 | 18 | 225 | 48 | 184 | 4.5 | 10 | 12 | 202 | 3 | 8 | 18 | 5.04 | |
| 200 | 219.1 | - | 320 | 20 | 280 | 55 | 236 | 5.9 | 10 | 15 | 258 | 3 | 8 | 18 | 7.95 |
| 250 | - | 267 | 375 | 22 | 335 | 60 | 282 | 6.3 | 12 | 15 | 312 | 3 | 12 | 18 | 11.16 |
| 273 | - | 375 | 22 | 335 | 60 | 290 | 6.3 | 12 | 15 | 312 | 3 | 12 | 18 | 10.87 | |
| 300 | 323.9 | - | 440 | 22 | 395 | 62 | 342 | 7.1 | 12 | 15 | 365 | 4 | 12 | 22 | 14.26 |
| 350 | 355.6 | - | 490 | 22 | 445 | 62 | 385 | 7.1 | 12 | 15 | 415 | 4 | 12 | 22 | 18.54 |
| - | 368 | 490 | 22 | 445 | 62 | 385 | 7.1 | 12 | 15 | 415 | 4 | 12 | 22 | 16.78 | |
| 400 | 406.6 | - | 540 | 22 | 495 | 65 | 438 | 7.1 | 12 | 15 | 465 | 4 | 16 | 22 | 21.25 |
| - | 419 | 540 | 22 | 495 | 65 | 438 | 7.1 | 12 | 15 | 465 | 4 | 16 | 22 | 19.1 | |
