Key Specifications / Features
Model No.: LF 14 OTF 02 Hits: 937

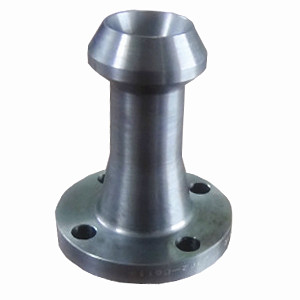

China Forged Nioflange Manufacturer: Industrial Forged Nioflanges, API and ANSI Standards, Size 3 Inch (DN80), Pressure Class 300 (PN50).
Request a quote
Share
Tags:
Detail Information
Type: Nipoflange.
Material: Forged Steel.
Size: 3 Inch (DN80).
Pressure: Class 300 (PN50).
Standard: API, ANSI.
| Branch NB |
Flange OD A |
Overall Length B |
Flange THK D |
Weight KG Approx |
||
| SCH 10-40 | SCH XS-80 | SCH 160-XXS | ||||
| 1/2" (DN15) | 96 | 70 | 70 | 80 | 14.3 | 1 |
| 3/4" (DN20) | 117 | 80 | 80 | 90 | 15.8 | 2 |
| 1" (DN25) | 124 | 90 | 90 | 100 | 17.5 | 2 |
| 1 1/2" (DN40) | 156 | 100 | 100 | 120 | 20.6 | 4 |
| 2" (DN50) | 165 | 110 | 110 | 125 | 22.4 | 5 |
