Model No.: LF 14 BF 13 Hits: 3555

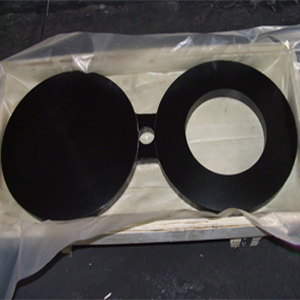

China API 590 ASTM A105 FF Spectacle Blind Flange Manufacturer: Class 600 (PN100), 10 Inch (DN250) Spectacle Blind Flanges, Flat Face, ASTM A105.
Request a quote
Share
Tags:
Detail Information
Product: Flat Face Spectacle Blind Flange.
Type: Spectacle Blind Flange.
Materials: ASTM A105.
Face: FF.
Standards: API 590.
Pressure: 600LB (PN100).
Size: 10 Inch (DN250).
| DN | d | B | Q | L | T1 | G | T | (kg) |
