Key Specifications / Features
Model No.: LF-20260424-AF-01 Hits: 0

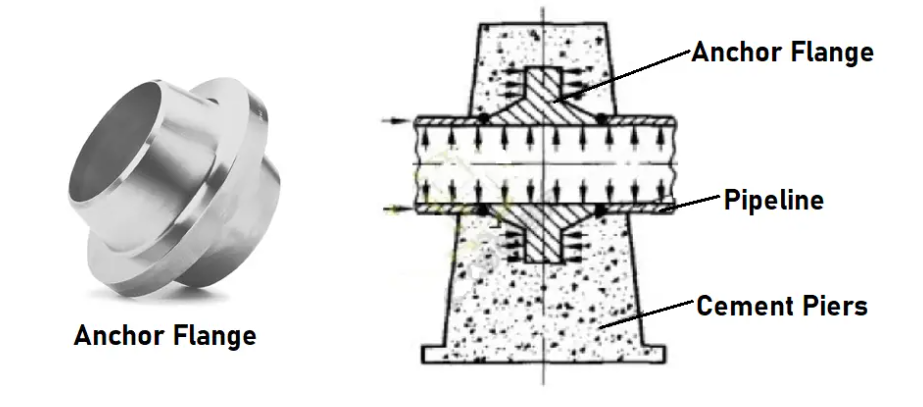

We manufacture high-pressure anchor flanges from ASTM A694 F65 carbon steel. This 6-inch, DN150 unit is rated for Class 1500 LB and PN250 service conditions. We produce anchor flanges in sizes ranging from 1/2 inch to 60 inches to meet diverse pipeline requirements. The beveled ends ensure proper weld preparation and joint integrity. These flanges are engineered to restrain pipeline movement and absorb axial forces in high-pressure systems.
Detail Information

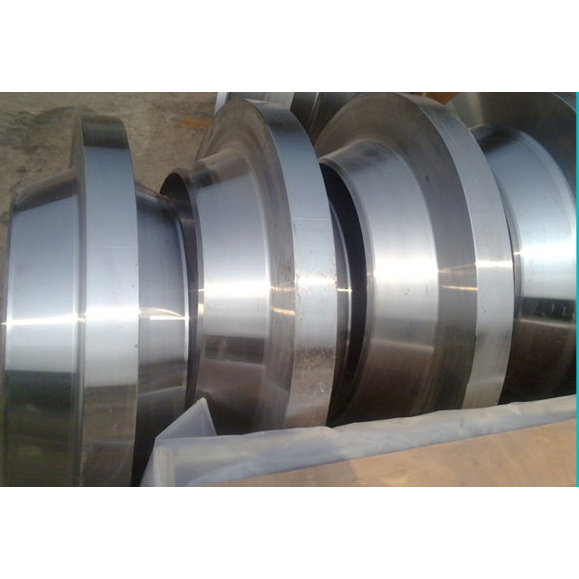

Product Name: ASTM A694 F65 Anchor Flange
Type: Anchor Flange
Material: ASTM A694 F65, Carbon Steel
Size: 6 Inch, DN150
Pressure Rating: Class 1500 LB, PN250
End Connection: Beveled Ends
Product Range
Standards: API, ANSI, BS, JIS, UNI, MSS SP; As per Client Drawings
Materials:
Stainless Steel, Alloy Steel, Carbon Steel
ASTM A105
ASTM A350 LF1, LF2 Class 1/Class 2, LF3 CL1/CL2
ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70
ASTM A182 F304/304L, F316/316L, F316H, F310, F321
ASTM A182 F11, F22
Size Range: 1/2-60 Inches, DN15-DN1600 (15-1600 mm)
Pressure Range: ANSI Class 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB
Application: Oil & Gas / Offshore / Water Systems / Shipbuilding / Power Plants / Pipeline Projects
