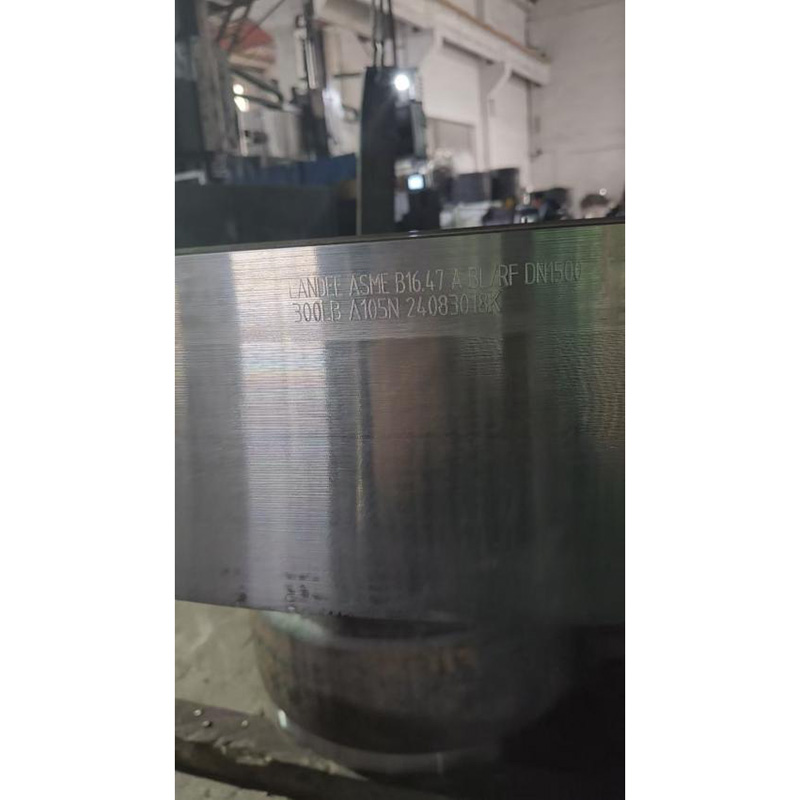

Carbon Steel Blind Flange, ASME B16.47 A, A105N, 60 IN, CL300

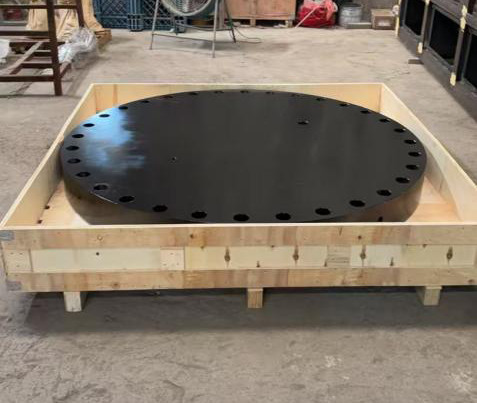

The manufacturer produces heavy-duty carbon steel blind flanges featuring an integrated testing hole for hydrostatic or pneumatic leak detection, engineered to ASME B16.47 Series A (MSS SP-44) standards for large-diameter high-pressure applications. Forged from normalized ASTM A105N carbon steel for enhanced toughness and weldability, this 60-inch (DN1500) blind flange is rated for Class 300 LB service with a raised face (RF) finish to ensure reliable sealing compatibility with gaskets.

Tags:

• ASME B16.47 Series A Blind Flange
• ASTM A105N Blind Flange
• 60 Inch Blind Flange
• Carbon Steel Blind Flange
• Class 300 LB Blind Flange

Product Name: Carbon Steel Blind Flange
Type: Blind Flange with Testing Hole
Size: 60 Inches, DN1500
Pressure: Class 300 LB, PN50
Design Standard: ASME B16.47 Series A
Material: ASTM A105N, Forged Carbon Steel
Sealing Face: Raised Face (RF)
