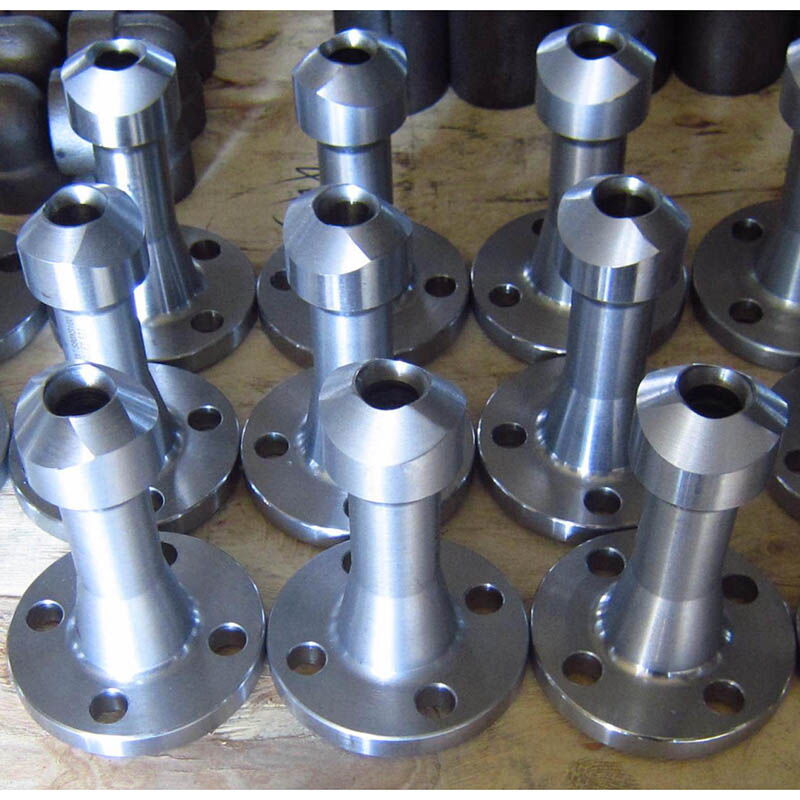

Carbon Steel Nipoflange, ANSI B16.5, A105N, 3 * 1 IN, CL1500

Key Specifications / Features

Model No.: LF-20251222-OF-01
Hits: 48
The China Carbon Steel Nipoflange Factory specializes in producing high-quality nipple flanges that meet ANSI B16.5 standards. These nipple flanges are manufactured from ASTM A105N carbon steel, ensuring strength and durability. With dimensions of 3 inches by 1 inch (DN80*DN25) and a Class 1500 LB pressure rating (equivalent to PN250), they feature SCH 80 wall thickness and butt welded ends for seamless integration into piping systems.

Detail Information

Product Name: Carbon Steel Nipoflange
Type: Nipple Flange
Design Standard: ANSI B16.5
Material: ASTM A105N, Forged Carbon Steel
Size: 3 * 1 Inch, DN80*DN25
Pressure Class: Class 1500 LB, PN250
Wall Thickness: SCH 80
End Connection: Butt Weld (BW)
