Key Specifications / Features
Model No.: LF-240419-WNF-01 Hits: 0
Explore our ANSI B16.5 Long Weld Neck Flange plant, specializing in duplex stainless steel and nickel alloy flanges. Available in sizes ranging from 1/2 to 24 inches and pressure ratings from 150 to 2500 LB, our flanges conform to PN6-PN40, 5K-30K, FF, RF, RTJ, JIS, and DIN standards, ensuring compatibility with a wide range of applications.
Request a quote
Share
Tags:
Detail Information

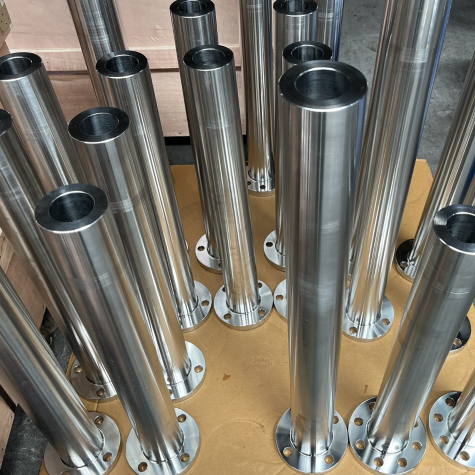

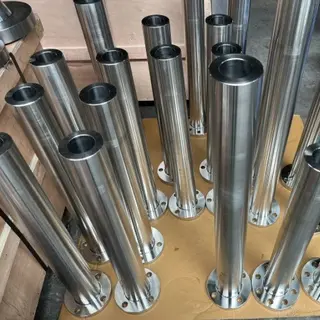

Product Name: Stainless Steel Long Weld Neck Flange
Size: 1/2 - 24 Inch, DN15-DN600
Length: according to standard or customer's length
Pressure: ASNI 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB
DIN: PN6-PN40, JIS: 5K-30K
Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Standard: ANSI B16.5, JIS, DIN, etc.
Materials:
Duplex Steel: ASTM A182 F51, ASTM A182 F53, ASTM A182 F60
Stainless Steel: ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F347H, ASTM A182 F321, ASTM A182 F321H, SS 904L, ASTM A182 F317L, ASTM A182 F310, etc.
Nickel Alloy: Monel 400, Incoloy 800H, Inconel 625, Incoloy 825, Hastelloy C276, Incoloy 600, etc
