Key Specifications / Features
Model No.: LF-20261022-PF-01 Hits: 1

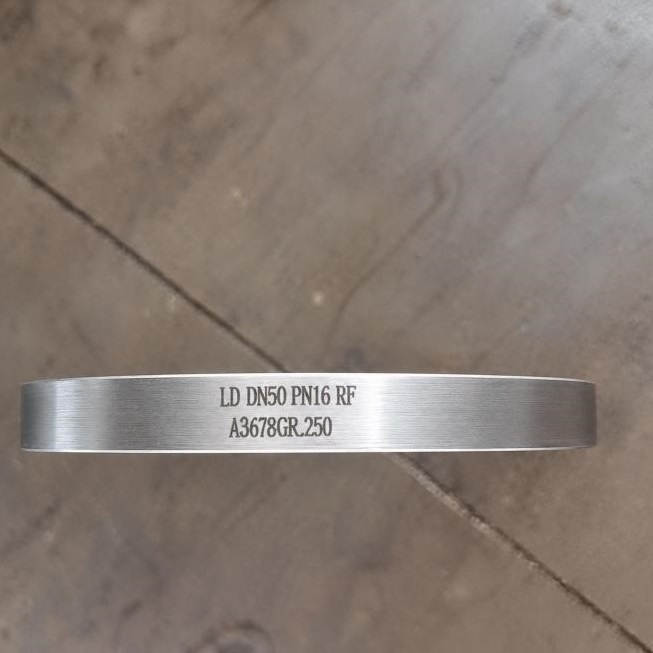

Crafted from AS/NZS 3678 GR.250 carbon steel plate, this custom DN50, PN16 raised face flange is precision machined for tailored piping assemblies. The RF sealing face ensures uniform gasket contact to prevent leakage across rated service pressure. Built to replace off-the-shelf units that fail special installation layouts, it forms secure joints within industrial circuits. It accommodates water, oil, gas, and other non-corrosive process fluids, offering dependable, long-lasting performance for custom connection points in diverse general piping projects.
Detail Information
Product: Custom Plate Flange
Nominal Diameter: DN50 (2 in)
Pressure Rating: PN16
Gasket Face: Raised Face (RF)
Material Grade: AS/NZS 3678 GR.250

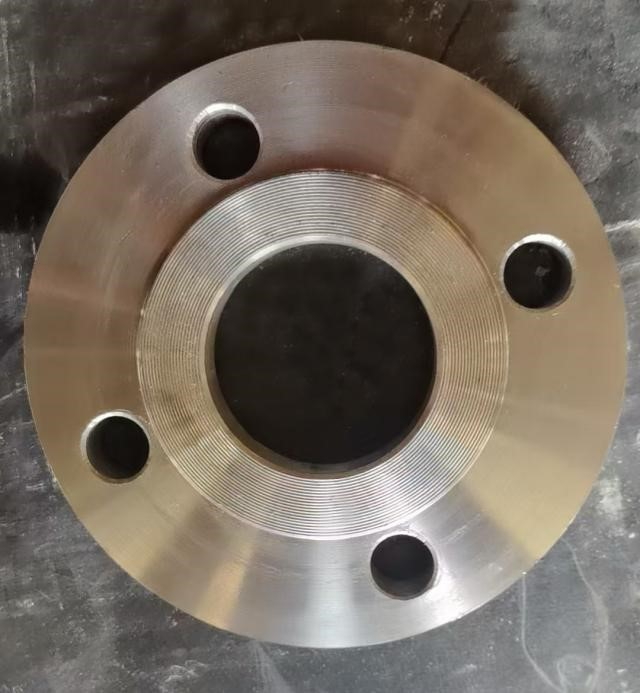

This custom machined RF flange is sized DN50 and rated PN16, fabricated from AS/NZS 3678 GR.250 carbon steel plate. Precision machining delivers a consistent gasket contact surface to maintain stable sealing performance under working pressure for piping joint assembly.
It is engineered for general industrial pipework handling water, hydrocarbon oils, fuel gas, and other non-corrosive process fluids. It is suitable for installations demanding non-standard flange dimensions to match special connection layouts.
