Key Specifications / Features
Model No.: LF-20251124-OF-02 Hits: 0

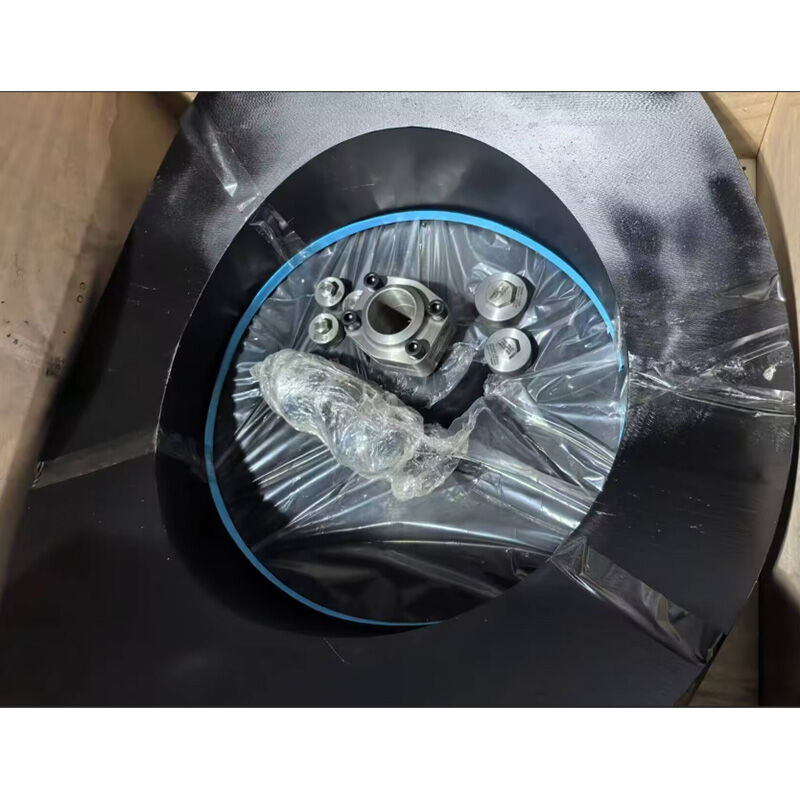

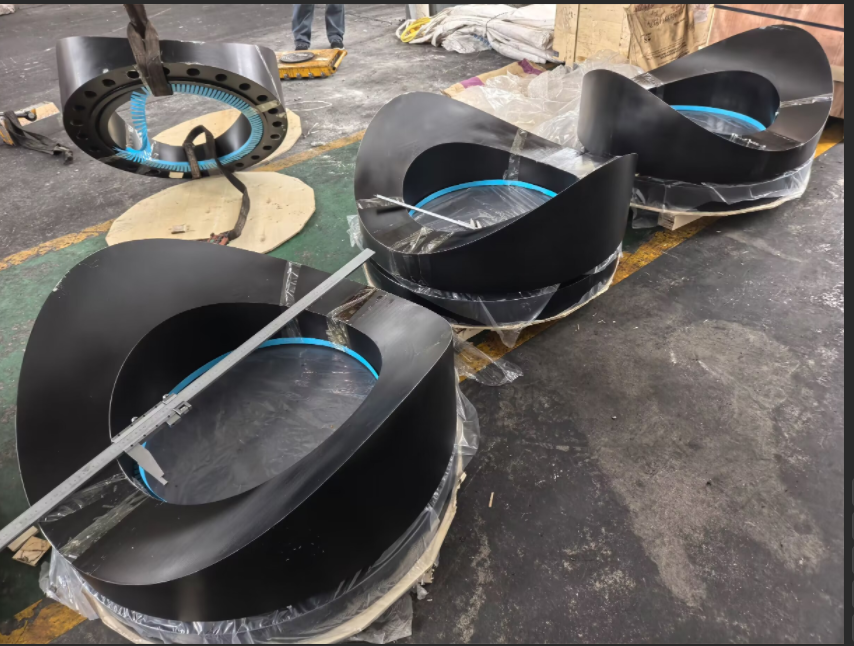

Our Studding Outlet Flanges Plant in China specializes in manufacturing high-quality flanges tailored for demanding industrial applications. These Studding Outlet Flanges feature a large 24-inch diameter (DN600) and are rated for Class 600 LB (PN100) pressure, ensuring robust performance in high-pressure systems. Designed with a Ring Type Joint (RTJ) face, they provide excellent sealing capabilities. The flanges are treated with anti-rust coatings to enhance durability and longevity.
Detail Information
Product Name: Studding Outlet Flange
Size: 24 Inch, DN600
Class Rating: Class 600 LB, PN100
Material: P355GH
Sealing Face: Ring Type Joint (RTJ)
Design: Bottom Contoured to Fit a Shell Radius of 570 mm
Surface: Anti-rust Black Painting
Drawing will be provided for confirmation upon order
