Key Specifications / Features
Model No.: LF-20260224-WNF-01 Hits: 0

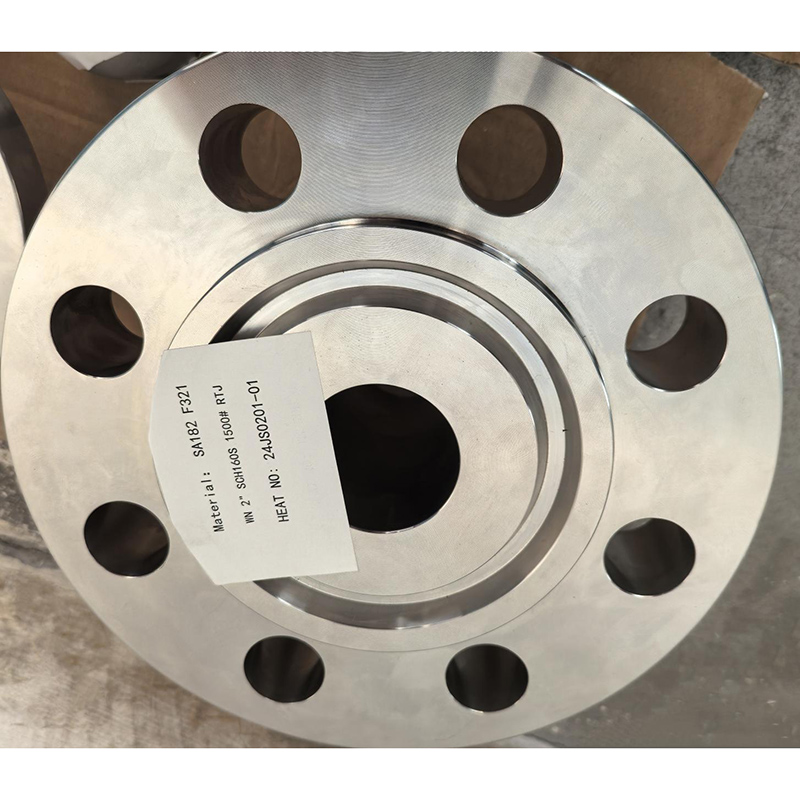

This premium ASME B16.5 Weld Neck Flange is a high-pressure pipe connection component designed for severe service conditions. Manufactured from ASME SA182 F321 stabilized stainless steel, this 2-inch (DN50) flange is rated for Class 1500 LB (PN250) and features a heavy Schedule 160S wall thickness to match high-pressure pipe bores. The Ring Type Joint (RTJ) facing ensures a metal-to-metal seal capable of containing extreme pressures and temperatures, making it ideal for critical applications.
Request a quote
Share
Tags:
Detail Information
Product Name: ASME B16.5 Weld Neck Flange
Type: WN Flange
Design Standard: ASME B16.5
Material: Stainless Steel ASME SA182 F321, ASTM A182 F321
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
Wall Thickness: SCH 160S
Sealing Face: RTJ Face
NACE Standards: NACE MR0175, NACE MR0103
