Key Specifications / Features
Model No.: LF-20260214-WNF-01
Hits: 32

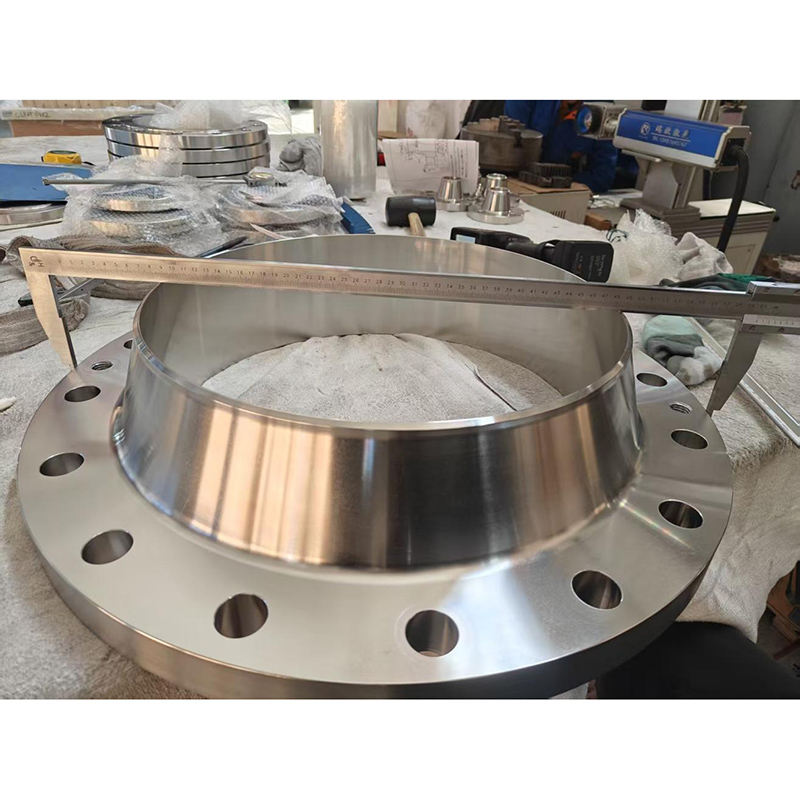

This plant supplies ASME B16.5 compliant weld neck flanges forged from low-carbon ASTM A182 F304L stainless steel, designed for superior corrosion resistance in as-welded conditions. Featuring a 20-inch (DN500) diameter, Class 150 LB rating, and a Schedule 10S bore, this Raised Face flange is specifically engineered with integrated jack screws to facilitate easy separation during maintenance.
Tags:
Detail Information
Product Name: ASTM A182 F304L Weld Neck Flange
Type: Welding Neck Flange
Design Standard: ASME B16.5
Size: 20 Inch, DN500
Pressure: Class 150 LB, PN20
Material: ASTM A182 F304L, Stainless Steel
Wall Thickness: SCH 10S
Face Type: Raised Face
Feature: With Jack Screw (as per client’s data, 3/4 Inch-10 UNC)
