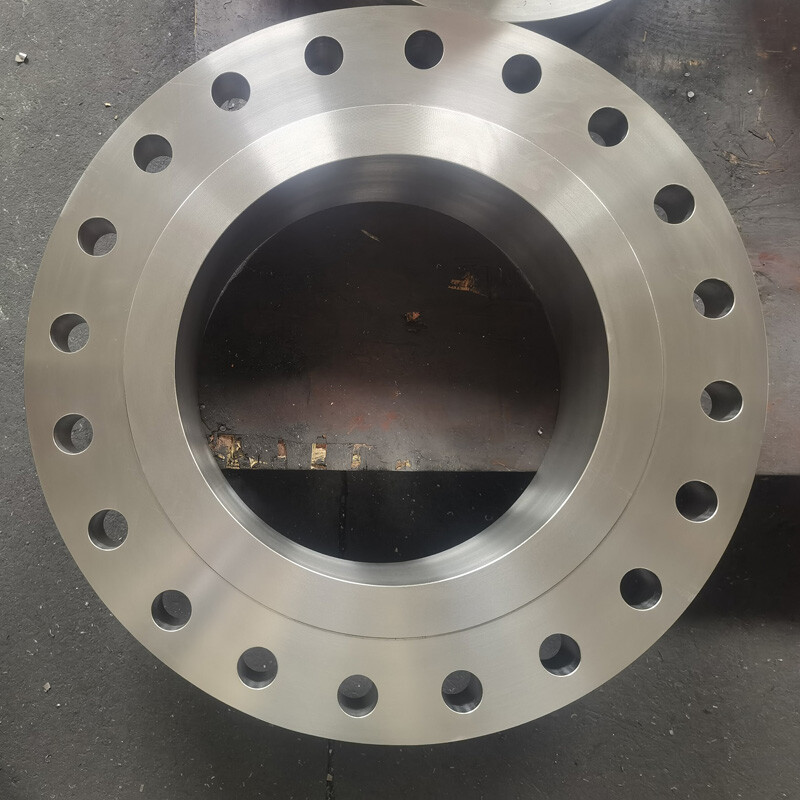

Nickel Alloy Weld Neck Flange, B564 UNS N08825, 16 IN, CL300

This weld neck flange is manufactured in a specialized nickel alloy factory for severe service environments. Forged from ASTM B564 UNS N08825 (Incoloy 825), it delivers exceptional resistance to acids, alkalis, and chloride stress corrosion. The DN400 (16-inch) flange features a long tapered hub with SCH 40 wall thickness, rated for Class 300 LB pressure service per ASME B16.5. Raised face design ensures concentrated gasket compression for reliable sealing.

• ASTM B564 UNS N08825 Weld Neck Flange
• Nickel Alloy Weld Neck Flange
• 16 Inch Weld Neck Flange
• ASME B16.5 Weld Neck Flange
• Class 300 LB Weld Neck Flange

Product Name: Nickel Alloy Weld Neck Flange
Type: Weld Neck Flange
Design Standard: ASME B16.5
Material: ASTM B564 UNS N08825, Nickel Alloy
Size: 16 Inch, DN400
Pressure Rating: Class 300 LB, PN50
Wall Thickness: SCH 40
Sealing Face: Raised Face
